# Configuring JMap Server to JMap Server connections

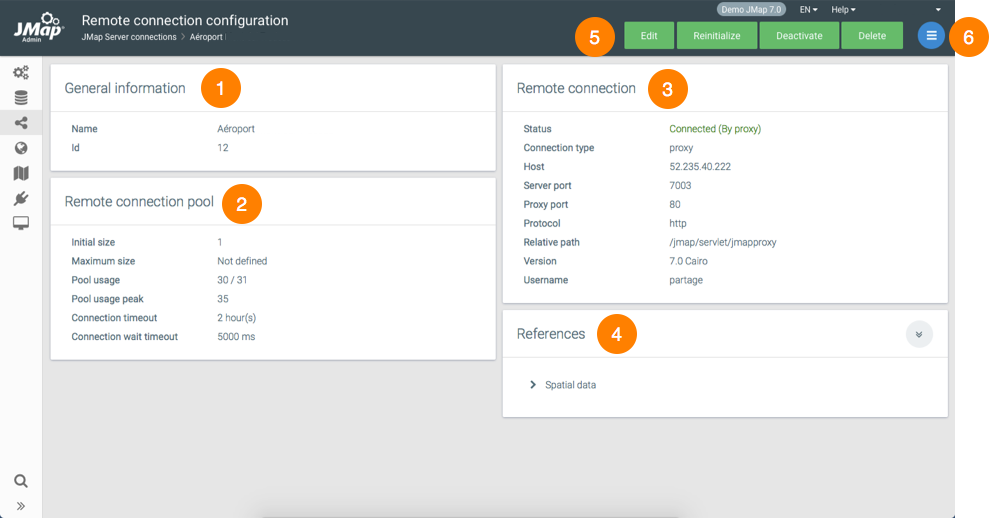

When you click on the name of a connection, the **Remote connection configuration** interface displays.

<figure><img src="https://2098443701-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2FcA9CuUnY5hTYroiPhD1w%2Fuploads%2FbNTM01jPUm970eDVPnor%2Fclip0077.png?alt=media&amp;token=81b3f0ee-0937-4a3e-b3bc-410e4d906770" alt=""><figcaption></figcaption></figure>

<table data-header-hidden><thead><tr><th width="79.5"></th><th></th></tr></thead><tbody><tr><td><strong>1</strong></td><td>General information about the connection.</td></tr><tr><td><strong>2</strong></td><td>Remote connection pool configured when the connection was created.</td></tr><tr><td><strong>3</strong></td><td>Information about the connection and the remote server, configured when the connection was created.</td></tr><tr><td><strong>4</strong></td><td><p>References. This section lists the spatial data sources that use this connection. </p><p>Clicking on their name will take you to their configuration page.</p></td></tr><tr><td><strong>5</strong></td><td>Buttons to edit, <a href="/en2/administrator/jmap-server-administrator-manual/jmap-server-to-jmap-server-connections/managing-connections.md#reinitializing-connections">reinitialize</a>, <a href="/en2/administrator/jmap-server-administrator-manual/jmap-server-to-jmap-server-connections/managing-connections.md#deactivating-a-remote-connection">deactivate</a> or <a href="/en2/administrator/jmap-server-administrator-manual/jmap-server-to-jmap-server-connections/managing-connections.md#deleting-connections">delete</a> the connection.</td></tr><tr><td><strong>6</strong></td><td>This menu allows you to access the <a href="/en2/administrator/jmap-server-administrator-manual/jmap-server-to-jmap-server-connections/configuring-jmap-server-to-jmap-server-connections/permissions-for-the-remote-connection.md">Permissions</a> section of the remote connection.</td></tr></tbody></table>
